DP418BK

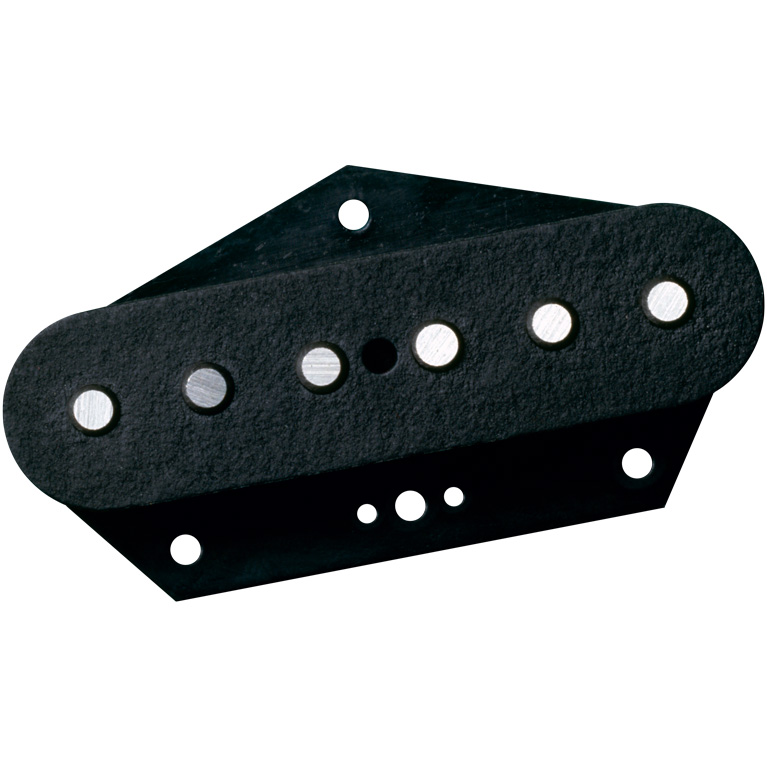

DP418BK. Area T™ Bridge.

We believe the Area 58™ and Area 61™ are a major step forward in the performance of hum-canceling StratxAE replacement pickups. The research and technology that went into these models has allowed us to make a similar advance with TelecasterxAE replacement pickups. The Area T™ Bridge does what a great TelexAE bridge pickup is supposed to do: the highs sing, the lows snap, and the mids have a punch that’s almost unreal.

Recommended For Bridge position.

Tech Talk
The most instantly obvious quality of the Area T™ Bridge Model is dynamics. The Area T™ tracks changes in pick attack and volume, and it does it instantly. It’s also very sensitive to string distance. The volume is very high when the pickup is close to the strings, but can be adjusted much lower by backing the Area T™ away. String pull is not a problem with the Alnico 2 magnets that are standard on the Area T™.

Specs. DP418BK:
Finish: Black.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 2.

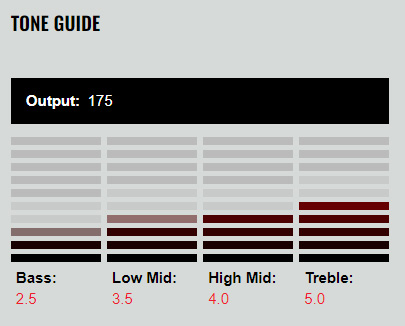

Output mV: 175.
DC Resistance: 7.50 Kohm.
Year of Introduction: 2007.
Patent: 4,442,749 & 5,908,802.
