DP246

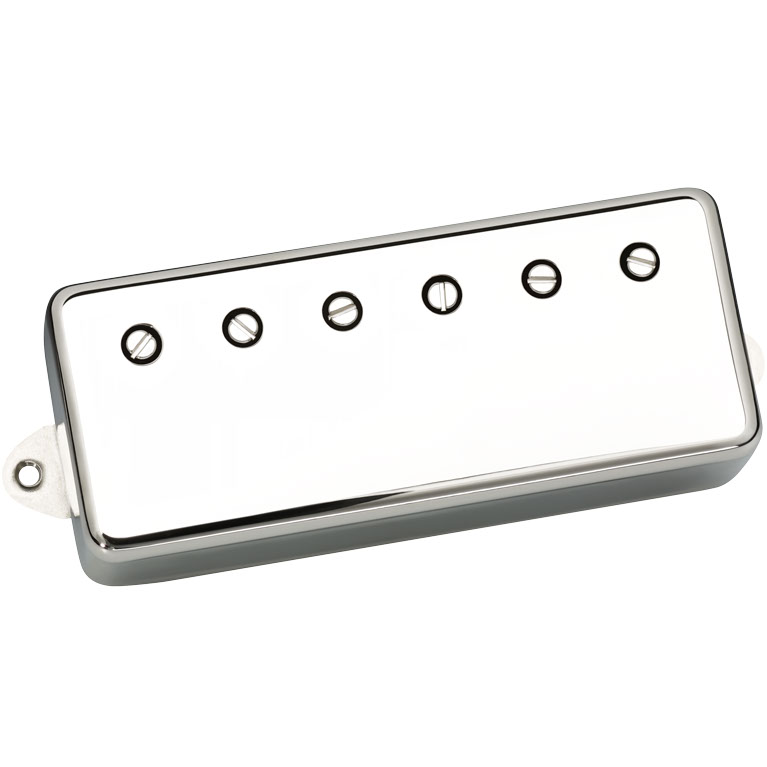

DP246. Pickup Mini humbucker PG-13/Middle Nickel. Paul Gilbert signature.

The PG-13™ mini humbuckers were developed for Paul Gilbert of Mr. Big. Paul is well known for his amazing musicianship, killer speed, and awesome technical ability.
The tone of a mini humbucker falls somewhere between a full-sized humbucker and a single-coil. Paul says the main characteristic of these pickups is clarity. x93It still has the beef; it’s not harsh.
I just plugged it in, played it, and went, x91Oh, this is good.’x94
If you’re wondering how mini humbuckers compare to full-sized humbuckers, they’re smaller, and have a distinctive tone. They sense a narrower length of string vibration, and that reduces lower
harmonics for clearer, brighter tones.
Being on the road with Mr. Big can be challenging when it comes to tones because there are so many different styles the band plays - acoustic ballads, heavy songs, fast songs, bluesy songs.
Paul needs a pickup that allows him to achieve all of the sounds.
The DP246 Middle model is slightly fatter and creamier than the Bridge model, making it great for Jazz and Blues solos. Its lower output and smaller size help keep it from getting muddy.
The Neck and Bridge models sound good together as well. The sound spreads out and you get that nice x94quackyx94 sound.
PG-13 Mini Humbuckers can rock Blues, Classic Rock, and even get in the mix with Modern Metal.


Recommended for Middle, will work in all positions.
Tech Talk
This is a mini humbucker with a big sound. Expect smooth treble response with an even amount of low end to back it up.
The coils are individually tuned to capture overtones that resemble a single-coil yet maintain low-end definition.

Specs. DP246
Finish: Polished Nickel Cover.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Ceramic.
Output mV: 135.
DC Resistance: 9.73 Kohm.
Year of Introduction: 2017.
Patent: 4,501,185.
