DP228FW

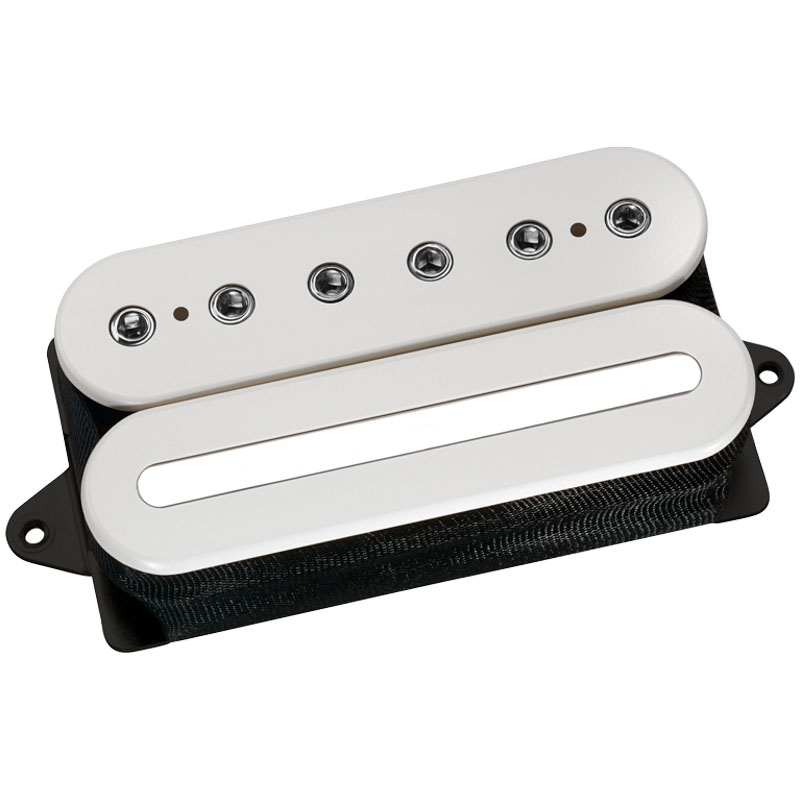

Crunch Lab™ DP228FW, F-spaced.

One thing has stayed consistent throughout John Petrucci’s long and successful career: the DiMarzioxAE pickups in his guitars. John has been pushing the envelope of progressive metal since the late eighties, and the new DiMarzioxAE Crunch Lab™ Bridge Model ensued from our most recent collaboration with John. He used it throughout Dream Theater’s tenth studio album, x93Black Clouds & Silver Liningsx94. John swears this is the best live and studio sound he has ever had, and the name says it all x97 x93crunchx94 is what it’s all about with a big, tight sound that’s neither muddy nor thin.

Recommended For Bridge position.

Tech Talk
The Crunch Lab™ is noteworthy (bad pun alert) for what it doesn’t do: it’s not a screamer, and it’s not about thundering lows. Its physical appearance is identical to the D Sonic™, but the internal design is a lot different. It’s louder, and the highs have more depth. The lows and mids are more open, and this is crucial for playing chords with body and presence through a gained-out amp. The voicing of the pickup is also different enough to the point that John prefers the Crunch Lab™ to be installed in almost all of his guitars (including the JP Bari) with the solid bar toward the neck, regardless of the guitar’s tuning.

Specs. DP228FW:
Finish: White. F-Spaced.
Wiring: 4 Conductor.
Magnet: Ceramic.

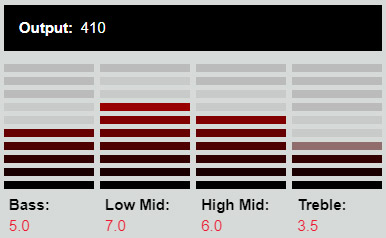

Output mV: 410.
DC Resistance: 11.03 Kohm.
Year of Introduction: 2009.
Patent: 4,501,185 & 5,908,998.
