DP147BK

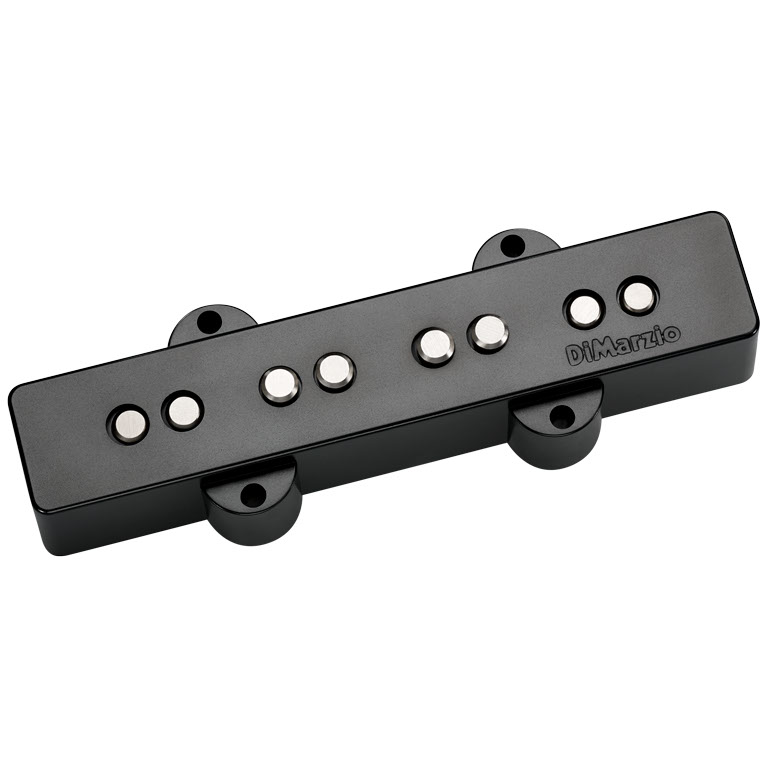

Ultra Jazz™ Neck DP147BK.

The hum-cancelling Ultra Jazz™ takes a traditional Fender® Jazz Bass® sound and really opens it up. Lows are deeper, highs are more percussive, and the mid-range is round but not muddy. Harmonic overtones jump off the strings. It’s also quick; with instant response to either fingers or pick-style playing. There’s only one word for this combination of qualities: “musical”. Choose the perfectly matched Ultra Jazz™ Pair, or try an Ultra Jazz™ bridge pickup with a Split P™ in the middle position.

Recommended For Neck position. The Ultra Jazz™ Neck was designed to fit the neck position of the original Fender Jazz Bass, which has neck and bridge pickup cavities of two different sizes.

Tech Talk
The appearance of the Ultra Jazz™ is traditional, but the wide dynamic range and frequency response of the hybrid magnetic structure allows both vintage and modern sounds. As with the Model J™, hum canceling is achieved with each coil sensing a pair of strings, rather than a stacked design; even with a relatively high DC resistance figure, the Ultra Jazz™ has very strong, percussive highs and clean lows.

Specs. DP147BK:
Finish: Black.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 5 & Ceramic.

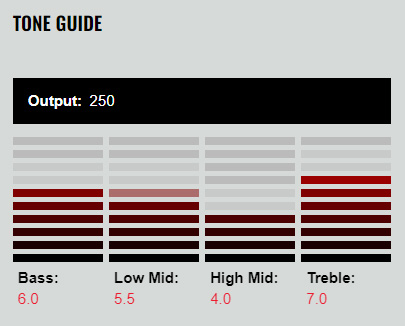

Output mV: 250.
DC Resistance: 12.3 Kohm.
Year of Introduction: 1996.
Patent: n/a.
