PDX-100

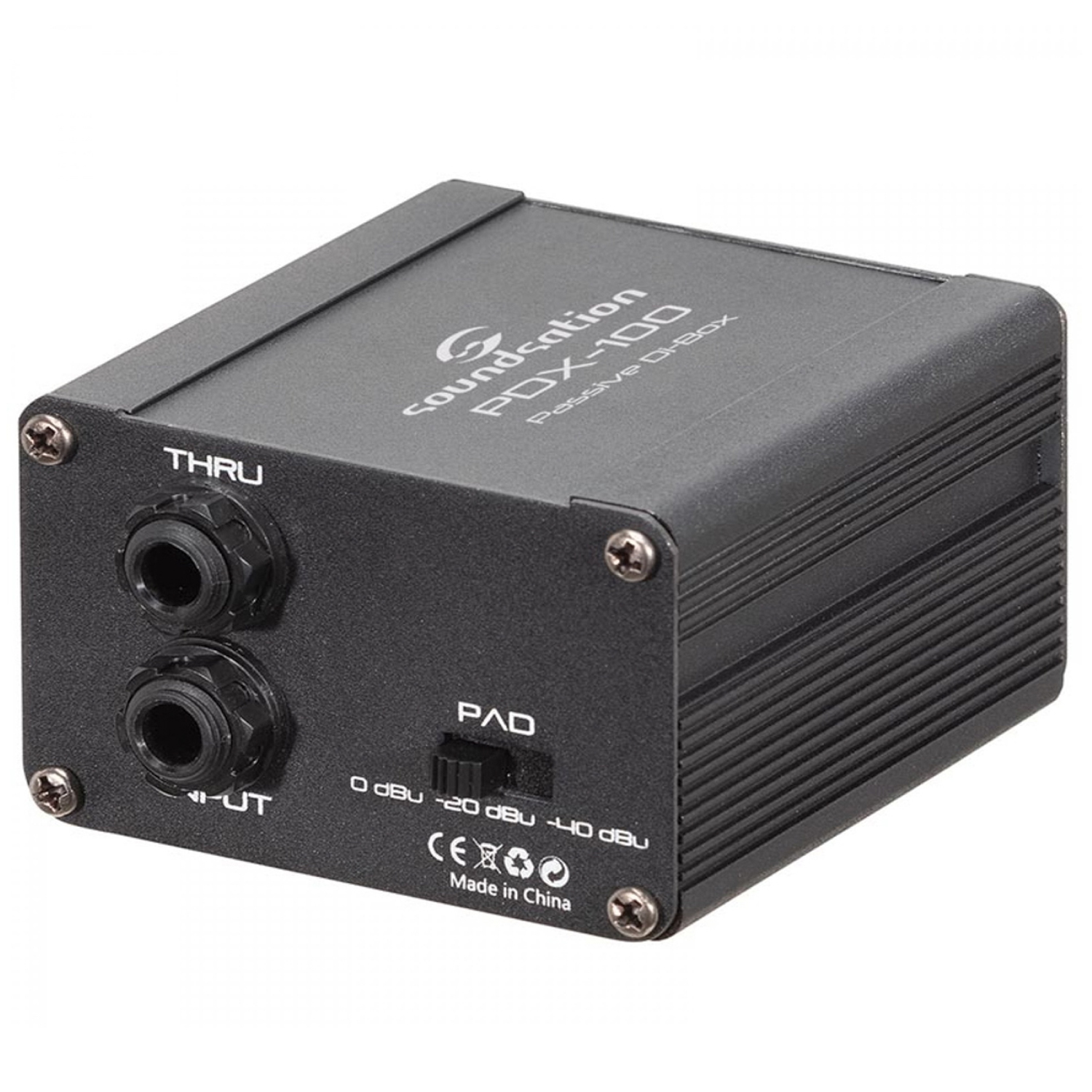

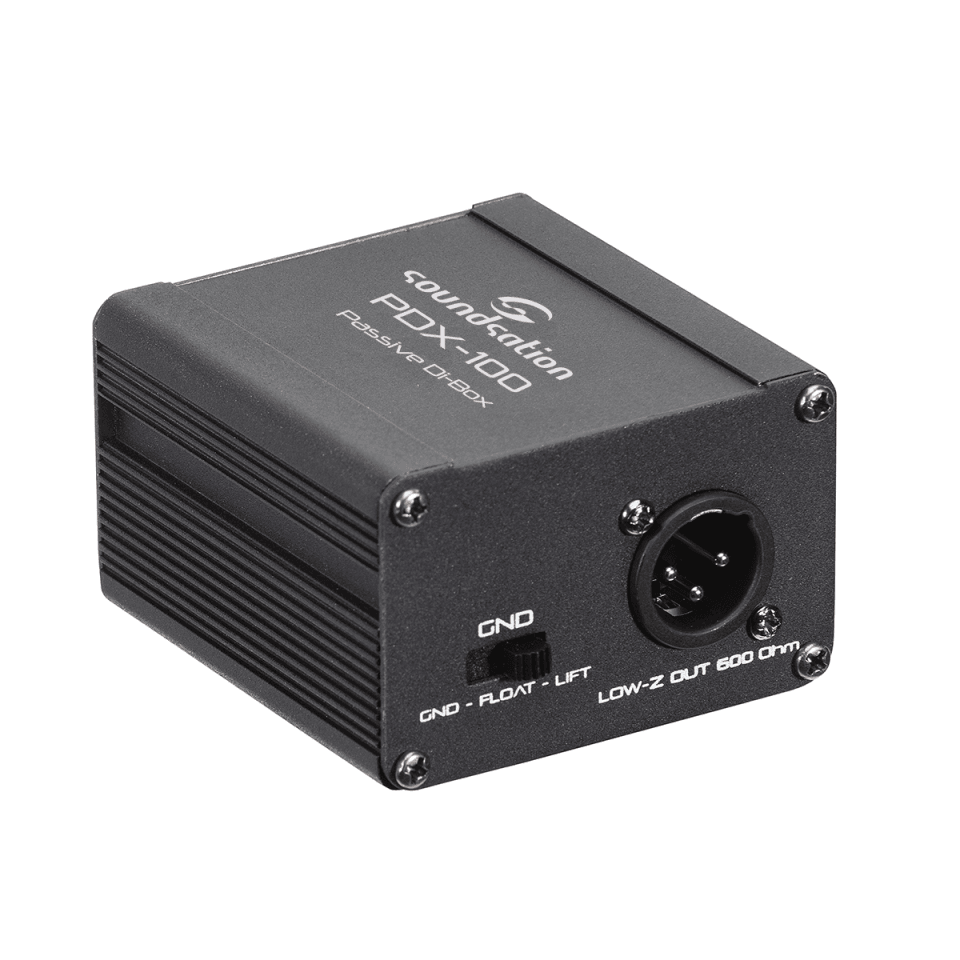

Soundsation PDX-100 Passiv D.I Box.

The DI-Box Soundsation PDX-100 converts high impedance audio signal from instruments or line outputs to a low
impedance balanced output to be fed directly into a mixing console or amplifier input. Low impedance (Lo-Z) is capable of longer cable runs via XLR connection with lower signal degradation than high impedance.


• Input Unbalanced 6,3mm Jack
• Outputs XLR Male balanced, 6,3mm THRU Jack unbalanced
• Input Impedance >100 KOhm
• Output Impedance 600 Ohm
• Controls PAD Selector (0/-20/-40dBu), GND Selector (GND, Float/Lift)
• Dimensions (WxDxH) 86 x 70 x 45 mm
• Weight 0,234Kg
• Packing Dimension (WxDxH) 90 x 75 x 60 mm
• Packing Weight 0,25 Kg
