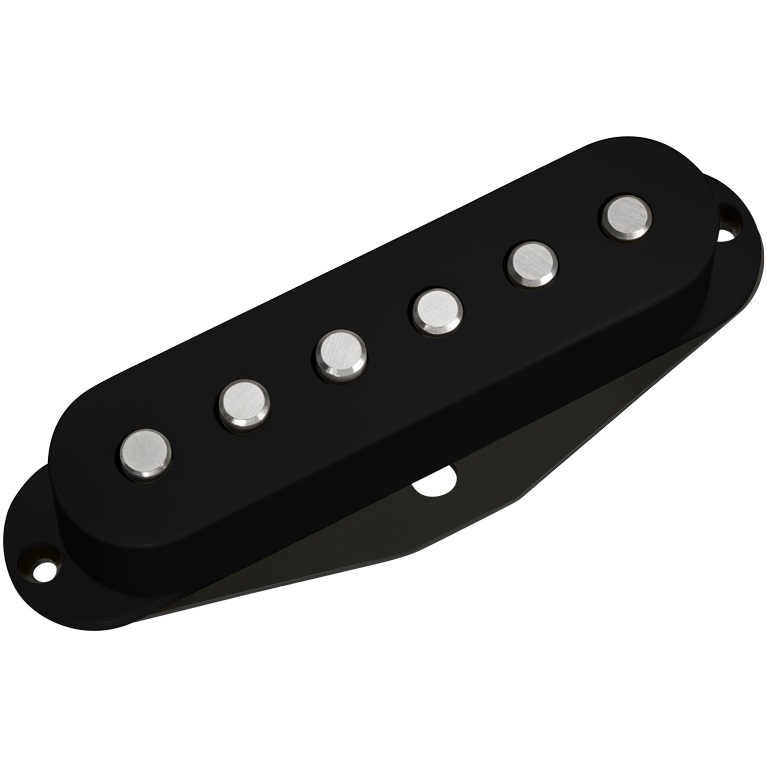

DP423BK

DP423BK. Injector™, Bridge pickup.

We first heard about Paul Gilbert in the 1980s. Billy Sheehan told us about an amazing 18-year-old who had recently arrived in California and had blown everyone away with his musicianship, speed, and awesome technical ability in Racer X. Naturally, we immediately asked Paul to become a DiMarzioxAE endorser. It was the start of a great relationship.
Recently, Paul has been heavily into our Area™ pickups. He’s also been playing a lot of Racer X-style instrumentals, so the time was right for signature Paul Gilbert single-coil sized DiMarzioxAE pickups. The outcome of our teamwork are the new Injector™ Neck and Bridge Model pickups. Paul loves the results, and you can hear them on his latest CD, x93Fuzz Universex94.

Recommended For Bridge position, can also be used in neck position with higher output bridge models.

Tech Talk
The Injector™ Bridge Model is one of our hottest hum-canceling models (185mV output) with six individual Alnico magnets. The sound is not like a vintage single-coil: highs are bright but not glassy, and lows are solid and defined. It was designed to work equally well with rapid single-note arpeggios and power chords without becoming muddy or compressed. It has about 40% less magnet-pull than standard single-coils, and this is essential for the superior speed and dynamic range with which this pickup responds to pick attack. Paul’s setup on the guitar he played on x93Fuzz Universex94 was Injector™ Neck Model in the neck, Area 67™ in the middle, and Injector™ Bridge Model in the bridge. The Injector™ is a lot louder and warmer than the Area 67™ but the combination produces varied tonal colors in the 2 and 4 positions, with the Area 67™ alone providing vintage tone and the Injector™ Neck and Bridge for heavier sounds.

Specs. DP423BK.
Finish: Black.
Pole pieces: Nickel.
Wiring: 4 Conductor
Magnet: Alnico 2
Output mV: 185
DC Resistance: 11.35 Kohm
Year of Introduction: 2010
Patent: 4,442,749 & 5,908,802

Tone Guide
Output: 185

Bass: 6.5

Mid: 7.0

Treble: 6.5


.
