DP381BK

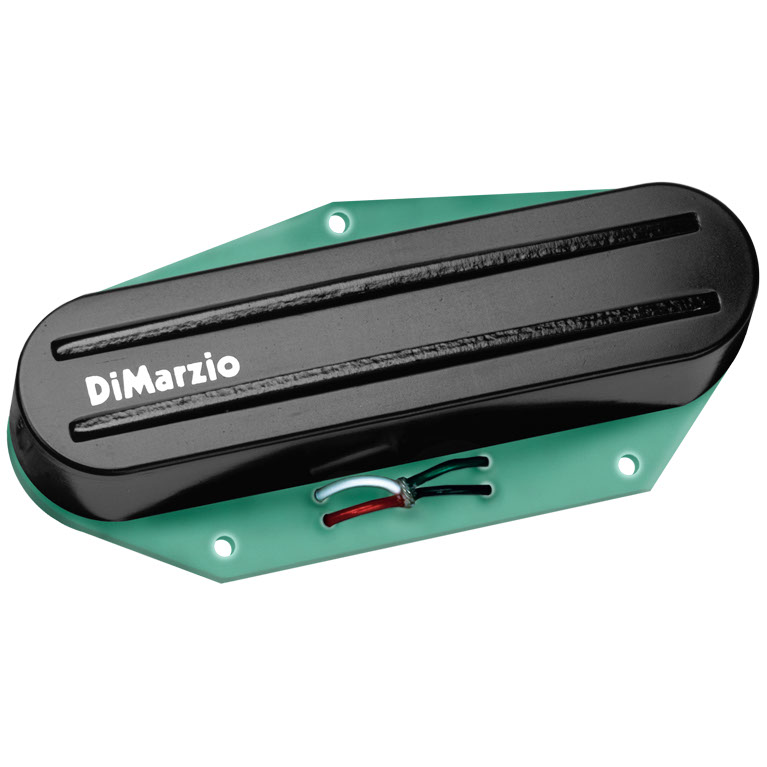

DP381BK. Fast Track T™ Bridge.

The Fast Track T™ is hotter than most single-coil TelexAE bridge pickups, but it has way more twang and snap than a humbucking pickup ought to have. We pulled this trick off by combining patented dual-resonance coils (less DC resistance than a standard TelexAE single-coil) with twin-blade poles for less string-pull than standard rod magnets. It all means more sustain, cleaner highs and tighter bass. It may not look like a traditional TelexAE bridge pickup, but if outstanding hum-free performance is the goal, the Fast Track T™ is a clear winner.

Recommended For Standard TelexAE bridge position.

Tech Talk
Different control resistance values will yield a wide range of tones with the Fast Track 2™. 250K controls (the usual value on most TelexAE guitars) will produce a fairly warm sound without much high-end bite: a 500K volume and 1 Megohm tone will be very twangy. 500K volume and 250K tone produce a more balanced tone.

Specs. DP381BK:
Finish: Black.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.

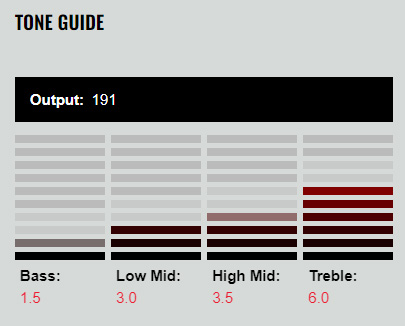

Output mV: 191.
DC Resistance: 5.72 Kohm.
Year of Introduction: 1994.
Patent: 4,501,185.
