DP302N

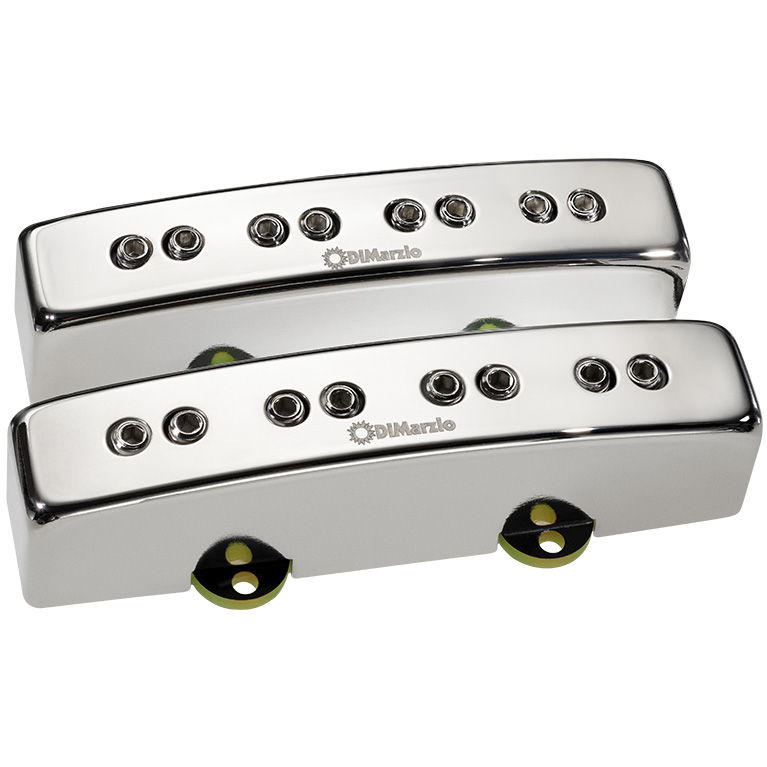

DP302N. Pickup Bas Relentless J™ Pair, Nickel Cover.

DiMarzio introduced the world’s first Fender JazzxAE bass replacement pickups at the NAMM show of 1977. DiMarzio invented the dual bar ceramic magnet structure for extra power and included twin hum-cancelling coils for decreased noise. The DiMarzio Model J™ is 50 percent quieter than the original Fender JazzxAE bass single coil pickups, and it's 60 percent louder.
We also added adjustable pole pieces to improve the string balance and designed them in our signature cream color. At its introduction, the DiMarzio Model J™ immediately become an industry standard and has been the pickup of choice on thousands of hit recordings.
With the introduction of the Relentless™ P bassxAE pickups, co-designed with Billy Sheehan, we began to think how we could make our Jazz BassxAE pickup even better.
As with the Relentless™ pickups, we removed all the hard edges from the standard J BassxAE pickup and added an arch to the top of the pickup to bring the sensing coils and pole pieces closer to the strings. These improvements increase the dynamic range and make active circuits unnecessary.

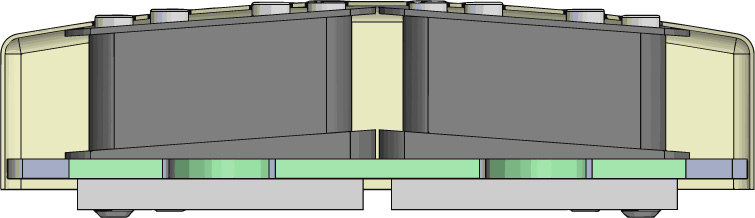

We invented (patent pending) parallelogram-shaped coils to add dimension, punch, and dynamics to the Relentless™ J sound, and we incorporated metal covers with foil-shielded cables to further suppress the background noise.

DiMarzio’s extra shielding makes the Relentless™ J better for both recording and stage performances. We mounted it onto a robust .09375x94 thick circuit board base plate so we could eliminate the annoying protruding mounting screws x97 ultimately creating a more comfortable and consistent foundation to rest your fingers on.
To improve the balance when both pickups are used together, we made the bridge position pickup louder than the neck position pickup. When the pickups are blended, you get a better volume match.
The Relentless™ pickups incorporate Neodymium magnets and produce 70 percent more output than traditional passive pickups, and they’re dead quiet. We’ve expanded the mid-range punch, adding snappy highs and precise lows. These pickups have a broad magnetic field so you can even bend notes without volume drop out.
Relentless™ J pickups will breathe new life into any bass, increase playability, and work well for any style of music from Motown to metal.

Recommended for Neck and Bridge.
Spec. DP302N: (DP300 + DP301)
Finish: Nickel Cover.
Pole pieces: Nickel.
Quick Connect: No.
Wiring: 4 Conductor.
Magnet: Neodymium.
Resistance: 6,97 Kohm.
Year of Introduction: 2022.

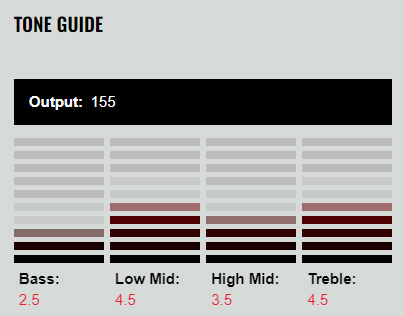

TONE GUIDE
Output:155 mV.
Bass:2.5
Low Mid: 4.5
High Mid: 3.5
Treble:4.5
