DP274BK

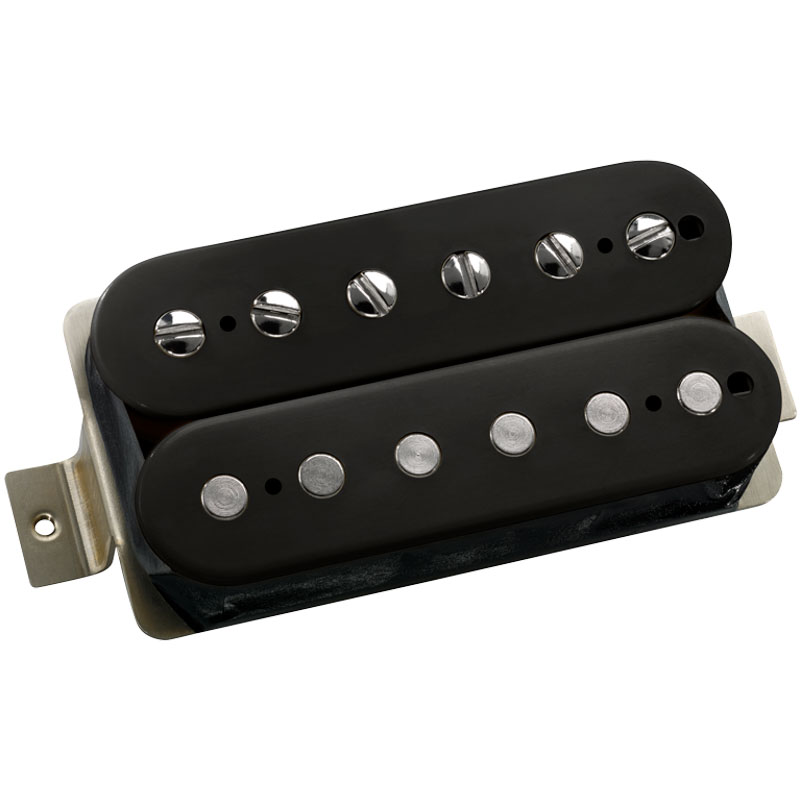

DP274BK. Pickup Humbucker PAF59xAE/Neck Black.

These days, it seems as if everyone’s looking for the legendary sound and dynamics of the original x93Patent Applied Forx94 pickups. Utilizing Larry DiMarzio’s 1959 Cherry Sunburst Les PaulxAE for reference,
DiMarzio used the same materials as 1959, gifted ears, and decades of winding experience to create the new PAFxAE 59 pickups.
Larry says the PAFxAE 59 Neck and Bridge models were built following an x93old family recipe.x94 We started with a 2-xBD-inch degaussed Alnico 5 magnet. The 42 AWG enamel wire coils are un-dipped and scatter wound.
They’re tuned to capture the guitar’s voice and dynamics without coloring it.
The PAFxAE 59 Neck and Bridge models feature Double Cream™ butyrate bobbins on our long-leg nickel/silver base plate just like the originals.
All materials are made in the U.S.A. to the tolerances of the best of the 1959 pickups.
The PAFxAE 59 Neck and Bridge models have the open dynamics, bright attack, smooth midrange, and rich bottom end, along with the creamy distortion of the original x93Patent Applied Forx94 pickups.
The PAFxAE 59 Neck model is very responsive, and harmonics leap out. Combined with the PAFxAE 59 Bridge model, it’s got that smooth, overdriven, classic arena rock sound.

Recommended For Neck. Can also be used in the bridge position.
Tech Talk
Combine with the PAFxAE 59 Bridge for the full vintage experience.

Specs:
DP274BK.
Finish: Black.
Polescrews: Nickel.
Wiring: 1 Conductor.
Magnet: Alnico 5.

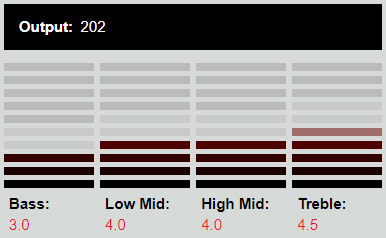

Output mV: 202.
DC Resistance: 8.2 Kohm.
Year of Introduction: 2017.
Patent: n/a.
