DP247BK

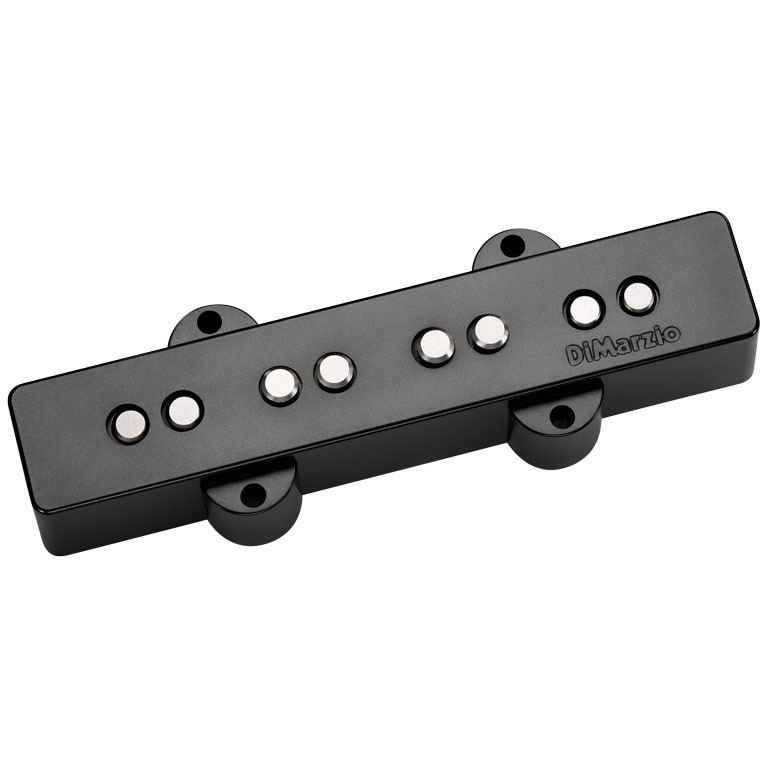

Area J™ Neck DP247BK.

Been waiting for a bass pickup that sounds like a vintage J BassxAE pickup and cancels hum? Your wait is over. Bass pickups are usually described with aggressive terms such as x93amazing punchx94 and x93thundering lowsx94, but that’s not the sound of vintage J BassxAE pickups. They’re all about warmth, sustain, and a clean, singing tone. The Area J™ captures all of those qualities.

Recommended For Neck position. The Area J™ Neck was designed to fit the neck position of the original Fender Jazz Bass, which has neck and bridge pickup cavities of two different sizes.

Tech Talk
The Area J™ is not loud, but it has a very focused attack, so it has power where it counts - at the center of the tone. The lows are very clear and clean, and the highs are both smooth and open-sounding. We’ve reduced the magnet-pull, and included 4-conductor wiring to allow both series and parallel humbucking modes.

Specs. DP247BK:
Finish: Black.
Wiring: 4 Conductor.
Magnet: Alnico 2.

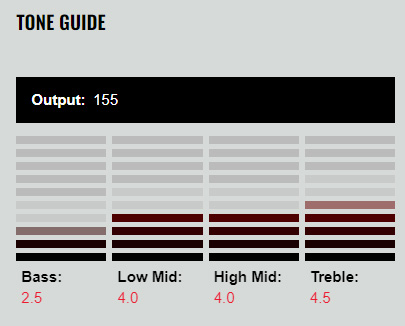

Output mV: 155.
DC Resistance: 7.80 Kohm.
Year of Introduction: 2009.
Patent: n/a.
