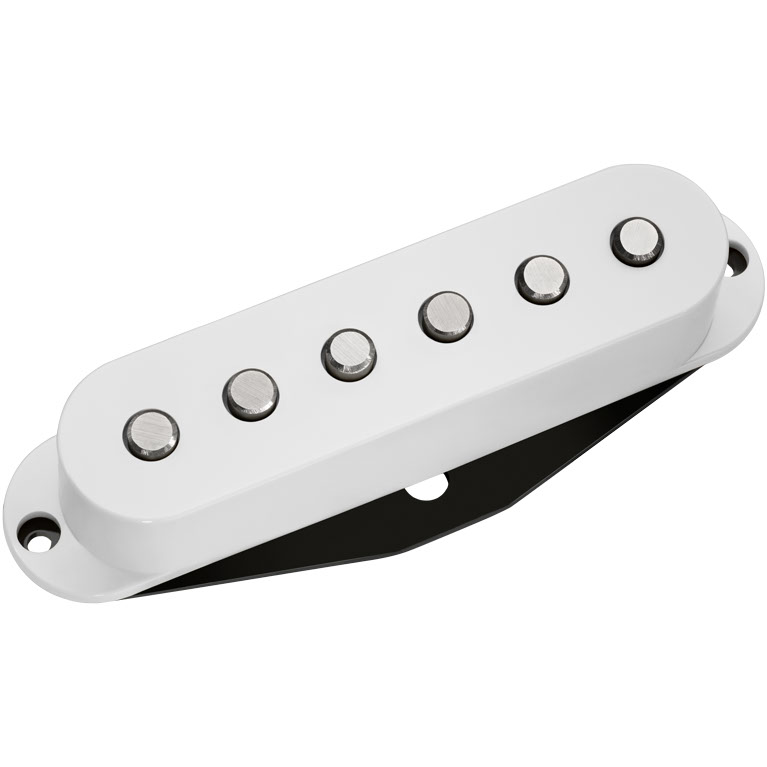

DP174W

DP174W. Red Velvet™.

The difference between a vintage StratxAE bridge pickup sound and a classic BroadcasterxAE or TelexAE tone is mostly a matter of attack and definition the StratxAE stings and screams, while the TelexAE punches and sings. We thought it would be neat to have a StratxAE pickup that does both, and this is it. The punch comes from the bottom-loaded Power Plate™, the sting from custom coil-winding and the True Velvet™ magnet stagger, and a unique mid-range x93growlx94 that’s a result of a hand-calibrated magnet structure. Try a Red Velvet™ bridge pickup with a pair of True Velvet™ pickups for a sound that’s both classic and new.

Recommended For All positions.

Tech Talk
One of the obvious effects of mounting a plate on the bottom of a pickup is to boost the magnetic field. We wanted the bigger sound that the plate provides, but we didn't want any increased magnet-pull, so we calibrate the magnetic field of every Red Velvet™ after it's assembled. The Red Velvet™ was originally designed for the bridge position, but it will also work well in the neck and middle, where it can be combined with a bridge humbucker like the Air Classic™.

Specs. DP174W:
Finish: White.
Pole pieces: Nickel.
Wiring: 2 Conductor.
Magnet: Alnico 5.

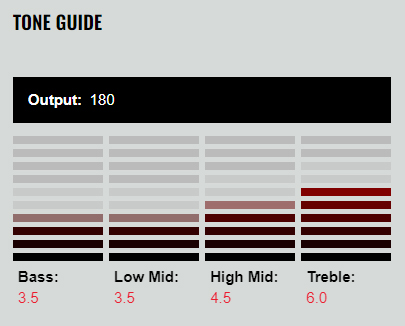

Output mV: 180.
DC Resistance: 8.52 Kohm.
Year of Introduction: 1994.
Patent: n/a.
