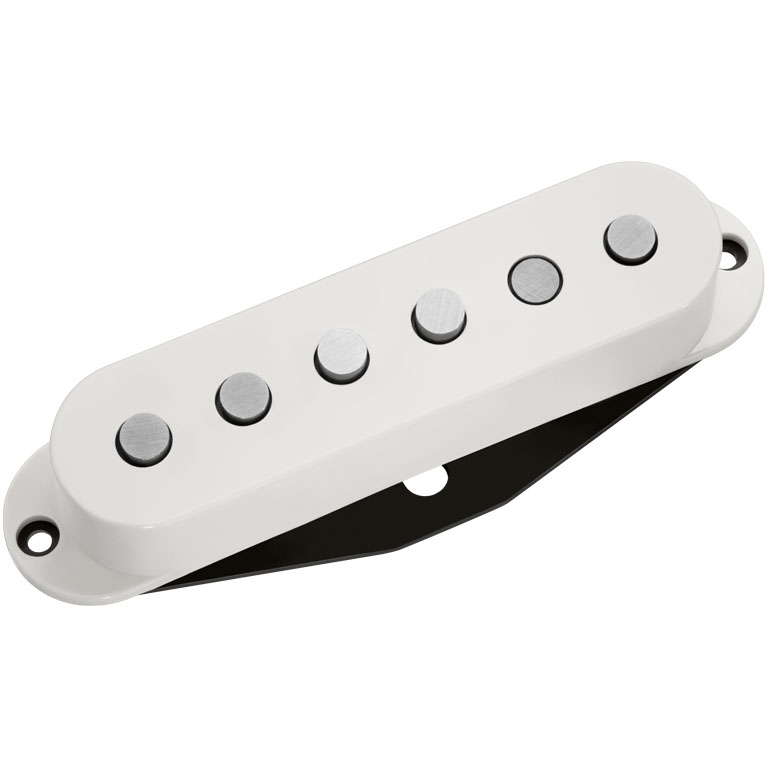

DP116W. HS-2™.
The HS-2™ has history behind it. The HS™ series were the first humbucking StratxAE replacement pickups we made in the early 1980s. Since then, the HS-2™ has become popular for two distinct qualities: in humbucking mode, it’s got a solid, natural sound that’s cleaner and brighter than a conventional humbucker, while single-coil mode creates one of the best vintage tones around. Because of its patented design, single-coil mode is not as noisy as a standard single-coil pickup. Taken together with the dead-quiet humbucking mode, this is an excellent pickup to use with rack systems and high-gain amps.
Recommended For All positions.
Tech Talk
In the classic StratxAE configuration, the HS-2™ works in all 3 positions. It can also be part of a mixed set with the HS-3™, and HS-4™ models. The HS-2™ also works in H-S-H combinations, recommended with PAF ProxAE, FREDxAE, Air Classic™, and The Humbucker From HellxAE in neck and bridge positions.
Specs. DP116W:
Finish: White.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 5.
Output mV: 90.
DC Resistance: 14.97 Kohm.
Year of Introduction: 1980.
Patent: 4,442,749.
