ADX-800

ADX-800. Active Di-Box.

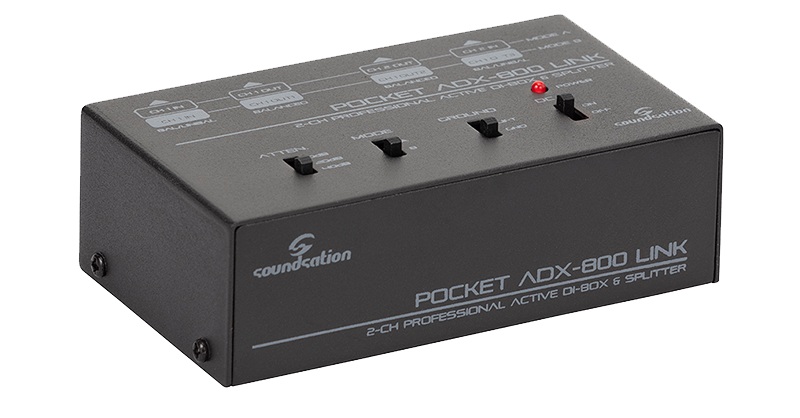

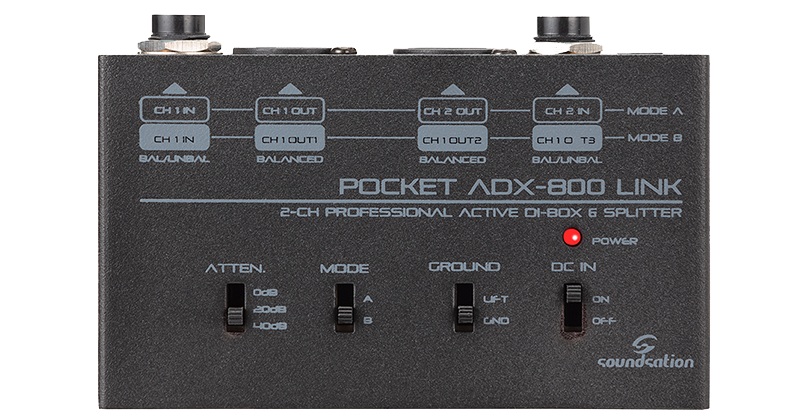

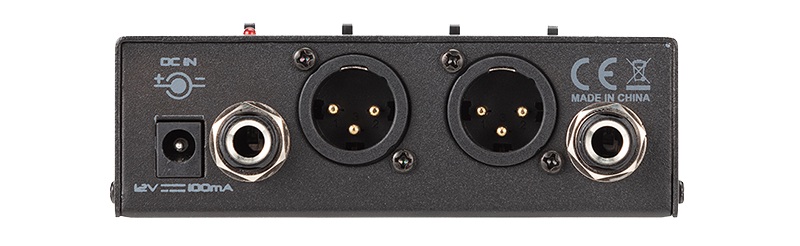

ADX-800 LINK is a DI-Box (Direct Injection Box) that converts up to two unbalanced audio signals (e.g. electric and / or acoustic guitars and basses, line signals such as guitar preamps, keyboards, multi-effects, computers, etc.) in balanced signals with XLR connections. This allows not only to attenuate the interferences that normally the unbalanced cables collect in the medium-long distances, but also acts as a splitter with a maximum of 3 outputs for Channel1 (2 XLR outputs + 1 balanced ¼? TRS Jack). It can be powered either by the supplied power adapter, or through the + 48V Phantom power coming from the mixer. It is equipped with a 3-position input attenuator (0dB, 20dB, 40dB) - to adapt the preamp stage to all types of signals - and the lift ground switch, very useful in case of ground loop. ADX-800 LINK is essentially an indispensable tool on stage, in the rehearsal room and recording studio to solve problems for musicians, DJs and sound engineers.

• 2 Channels DI-Box Operation.
• 1 Channel Splitter function with max 3 Outputs.
• TRS 1/4? Jack Outputs.
• Balanced XLR Outputs.
• 0/20/40dB Attenuation.
• Operable via external Power Adapter (supplied) or external Phantom Power.
• Ground Loop selector.

• Frequency Response: 10Hz-30KHz ±1dB
• Max Input Level: 15 dBU ±1dB
• Noise Level: -65dBU.
• Attenuation Pad: 0dB/-20dB/-40dB.
• Modes: 2-Channel/Link.
• Phantom Power (In case of power from balanced XLR connection): +48Vdc.
• Power Adapter (included): 12Vdc/100mA min.
• Consumption: 2.3mA.
Unit Size: 112x65x36 mm
• Unit Weight: 260g.
